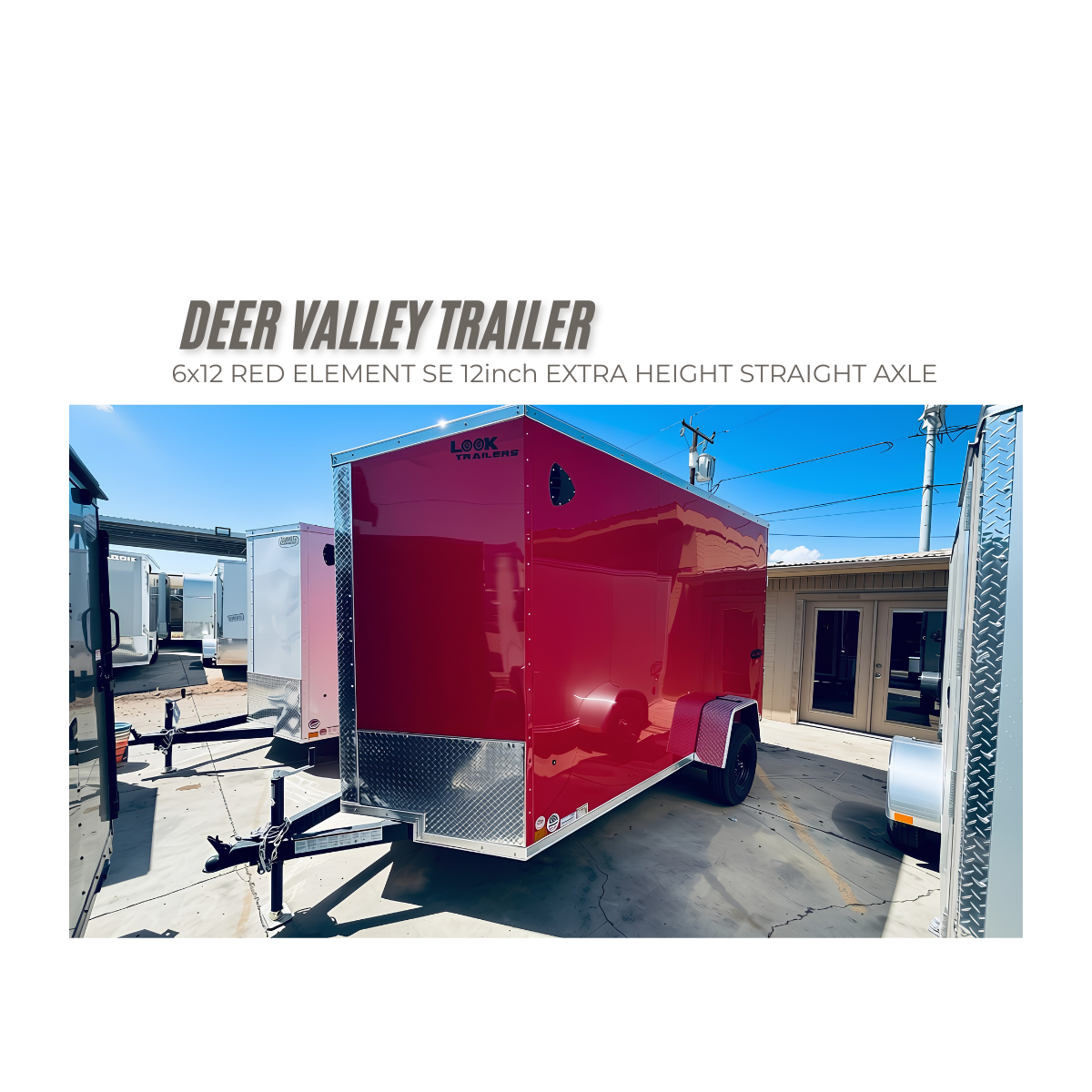

6x12 RED ELEMENT SE 12inch EXTRA HEIGHT STRAIGHT AXLE #0135
6x12 RED ELEMENT SE 12inch EXTRA HEIGHTSTRAIGHT AXLE
STRAIGHT AXLE ADVANTAGE: Better Ground Clearance: A straight tube runs completely straight from wheel to wheel, lifting the trailer frame higher off the ground. This helps prevent the bottom of the trailer from scraping on steep driveways, rough terrain, or unpaved job sites
CAPACITY
GVWR: 2,990 lbs.
GAWR: 3,500 lbs.
EMPTY: 1411
PAYLOAD CAPACITY: 1579 lbs.
Axle: (1) 3,500 lb. Drop Spring Idler Axle
Axle Configuration: Single Axle
Brakes: No Electric Brakes Listed / Idler Axle
Hubs: Easy Lube
6x12 Element SE — With +12" Extra Height
Measurement | Standard | With +12" Height |
Interior Width | 69" | 69" |
Interior Box Length | 141" | 141" |
Interior Height | 78" (6'6") | 90" (7'6") |
Deck Width | 69" | 69" |
Deck Length | 163" | 163" |
Overall Length | 194" | 194" |
Deck Height | 18" | 18" |
Coupler Height | 17" | 17" |
Standard Overall Height | 99" (8'3") | approx. 111" (9'3") |
Coupler: 2" A-Frame
V-Nose: 24" Sloped with 6" Drop
Rear Ramp: 150 Series Assisted with 16" Extension
Side Door: 32" Flush Lock with Aluminum Holdback
Floor: 3/4" Engineered Wood
Exterior: Piedmont .080" Composite Screwless Panels
Stone Guard: 24" ATP
Roof: Brawn LightLID Translucent Roof
Tires: ST205/75R15C 6-Ply
Wheels: 15" 5-Lug Steel with Stainless Center Caps
Lighting: Full LED with Integrated Backup/Taillights
