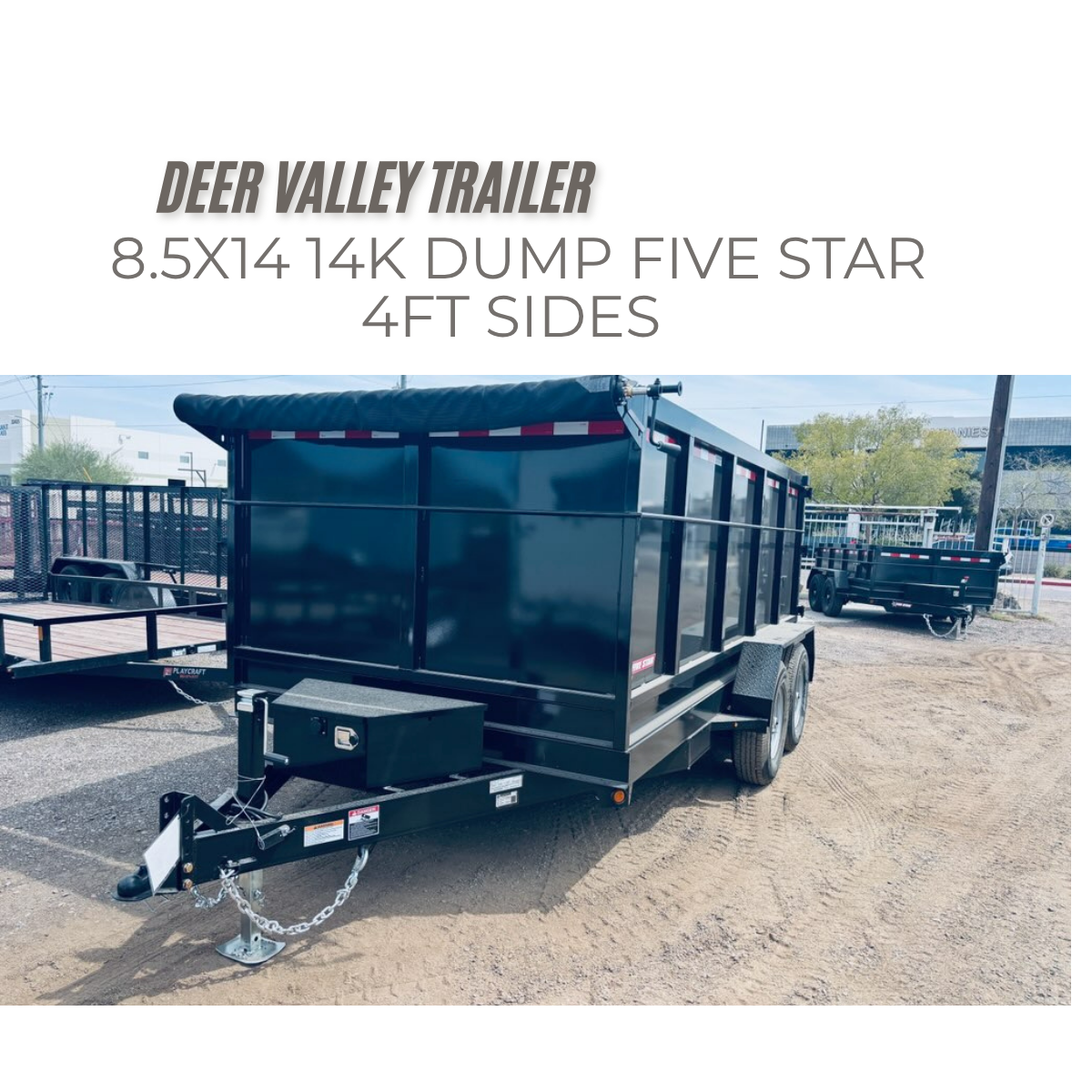

8.5x14x4 14K Dump Trailer | Five Star 4ft High Sides

MODEL: FS DT285 7X14 14K 4FT SIDES #8052

Weights & Capacities

• Model: FS DT285 7X14 14K SH (4 Ft Sides)

• Gross Vehicle Weight Rating (GVWR): 14,000 lbs.

• Empty (Curb) Weight: 4,990 lbs.

• Payload Capacity: 9,010 lbs.

• Volume Capacity: Approx. 14.5 Cubic Yards

Dimensions

• Bed Dimensions (Inside): 6.5 ft (78" – 80") Wide x 14 ft (168") Long

• Side Wall Height: 48 inches (4 ft solid steel high sides)

• Overall Dimensions: 8.5 ft (102") Overall Width (fender-to-fender) x Approx. 18 ft Overall Length

• Dump Angle: Full 45-Degree Dump Angle

Frame & Deck Construction

• Main Frame: 6" Structural Steel Channel Main Frame

• Tongue: 6" Wrapped Channel Steel Tongue

• Bed Floor: Heavy-Duty 12-Gauge to 10-Gauge Solid Smooth Steel Floor

• Sidewall Construction: 12-Gauge / 14-Gauge Solid Steel with 2" x 2" Steel Tubing Top Rail and Heavy Upright Supports

• Fenders: Heavy-Duty Steel Diamond Plate Fenders

• Cargo Security: 4 Heavy-Duty Welded In-Bed D-Rings & Perimeter Stake Pockets

Running Gear, Axles & Suspension

• Axles: Dual (2) 7,000 lb. Heavy-Duty EZ-Lube Axles (14K capacity)

• Brakes: Forward Self-Adjusting Electric Brakes on BOTH Axles with Breakaway Safety Switch

• Suspension: Heavy-Duty Slipper Spring / Multi-Leaf Equalized Suspension

• Tires: ST235/80R16 10-Ply Radial Tires (Load Range E)

• Wheels: 16" 8-Lug Heavy-Duty Steel Wheels

Hydraulics & Rear Gate

• Hydraulic System: 12V Power-Up / Power-Down Hydraulic Pump (KTI System)

• Lifting Mechanism: Heavy-Duty Hydraulic Scissor Hoist / Cylinder System

• Battery & Storage: Deep Cycle 12V Battery housed in a front tongue-mounted lockable steel toolbox with onboard battery charger

• Controller: Handheld Corded Remote Pendant Controller with Magnetic Backing

• Rear Gate: Dual-Action Barn Doors / Spreader Gate with Heavy Cam-Lock Latches

Electrical, Hitch & Standard Extras

• Coupler: 2-5/16" Heavy-Duty Adjustable Ball Coupler

• Jack: 10,000 lb. Drop-Leg Top-Wind Tongue Jack

• Lighting: DOT-Approved Recessed Protective LED Lights

• Plug: Standard 7-Way RV-Style Round Plug

• Included Extras: Slide-in Equipment Ramps with Under-Bed Rear Ramp Storage

• Built-in Roll Tarp Kit with integrated crank and hold-downs

• Welded Exterior Spare Tire Mount

• Heavy-Duty DOT-Rated Safety Chains with Clevis Latch Hooks
